UNUN 9:1 - LOW POWER & QRP

300 Watts max

Questo UNUN 9:1 trasforma impedenze da 450 a 50 Ohm. La massima potenza ammessa è di 300 Watts SSB entro un livello di ROS di 1,3:1. Per livelli superiori (ROS) o impiegop in CW/DIGImodes necessita ridurre adeguatamente la potenza in trasmissione. E' destinato ad installazioni fisse e portatili e la zanca a palo (in dotazione/asportabile) accomoda diametri compresi tra mm 30,00 e mm 50,00. E' dotata di una piastrina di Policarbonato trattata UV. I multifori consentono l'applicazione del radiatore per antenne di tipo Random e LONG-WIRE e per il/i radiale/i, sgravando i pin di collegamento dalla tensione meccanica.

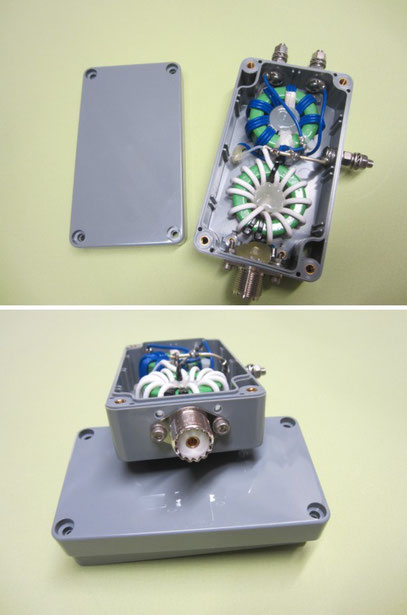

Le ferriti sono di tipo FT140-43 (o FT150-K secondo disponibilità); il trasformatore (ferrite alta) è composto con cavo rame argentato - isolato teflon; il Choke RF (ferrite bassa) è composto con RG 188 A-U. I pin di collegamento sono di acciaio inox.

La connessione prevede il radiatore al pin superiore (specificato) ed il radiale/i al pin laterale.

IMPORTANTE: la dichiarazione di 9:1 è quella principale.

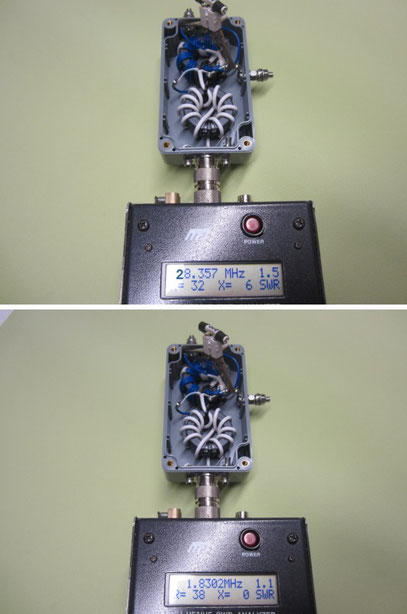

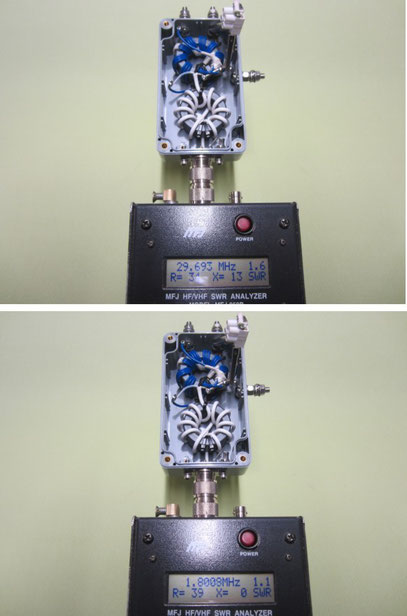

La circuitazione comprende anche la trasformazione 4:1 che dispongo come "accessoria" (seconda foto)!

Larga banda da 1.8 a 29 MHz.



This UNUN 9:1 transform impedances from 450 to 50 Ohm. It is indicate for power not exeeding 300 Watts SSB with a value of VSWR of 1,3:1. For higher levels (VSWR) oe use in CW/DIGImodes needs adequately reduce the transmission power. The UNUN is designed for fixed and portable installations and the clamp for mast (supplied/removable) is useful for diameters ranging from mm 30,00 to mm 50,00. The Polycarbonate plate is UV treated. The multiple holes allow the application of Random Wire Antennas or LONG WIRE Antennas and its radials, relieving the pins from mechanical tension.

The ferrites are FT140-43 (or FT150-K); the transformer (upper ferrite) is made by silver-plated copper wire - Teflon covered; the RF Choke is formed by RG 188 A-U. The connecting bolts are stainless-steel.

The radiator cable must be connected to the high pin (specified), radial/s to the side pin.

IMPORTANT: the declaration of 9:1 is the primary.

The circuit also includes the transformation 4:1 that I appoint as an accessory (second photo)!

Wide band from 1.8 to 29 MHz.
