UNUN 4:1 - LOW POWER & QRP

300 Watts max

Questo UNUN 4:1 attua la trasformazione da 200 a 50 Ohm. La massima potenza ammessa è di 300 Watts SSB entro un ROS di 1,3:1. Per livelli superiori (ROS) o per impiego in CW/DIGImodes si rende necessaria un'adeguata riduzione della potenza in trasmissione. E' destinato ad installazioni fisse e portatili e la zanca a palo (in dotazione/asportabile) accomoda diametri compresi tra mm 30,00 e mm 50,00. E' dotato di una piastrina di Policarbonato trattata UV. I fori multipli consentono di applicare sia il radiatore filare che il/i radiale/i sgravando i pins di collegamento dalla tensione meccanica.

Le ferriti sono di tipo FT140-43; la circuitazione del trasformatore (ferrite alta) è composta con cavo rame argentato isolato Teflon; il Choke RF (ferrite bassa) è composto con RG 188 A-U.

Il pin superiore accoglie il cavo radiatore; il pin laterale connette il piano di terra.

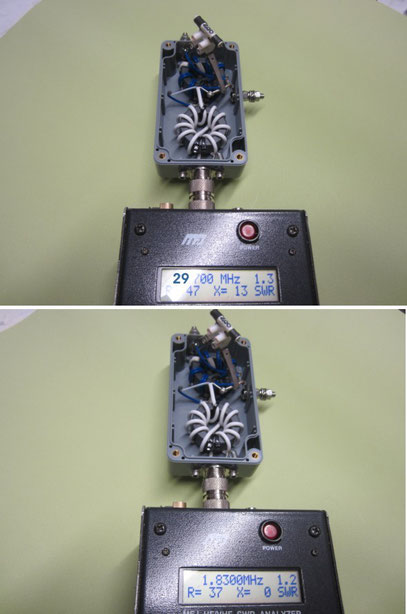

Larga banda da 1.8 a 29 MHz.

Molti OM usano impiegare la presente trasformazione per alimentare antenne di tipo O.C.F.D. (alias Windom), quando la propria installazione è particolarmente bassa rispetto al piano di terra reale. La connessione prevede la tratta "lunga" al pin superiore, mentre la tratta "corta" va connessa al pin laterale.



This UNUN 4:1 transforms 200 to 50 Ohm. It is indicate for power not exeeding 300 Watts, with a value of VSWR less than 1,3:1. For higher levels (VSWR) or use in CW/DIGImodes needs adquately reduce the trasmission power. It is designed for fixed and portable installations and the clamp for mast (supplied/removable) is useful for diameters from mm 30,00 to mm 50,00. The Polycarbonate plate is UV treated. The multiple holes allow the application of a Random Wire Antenna (radiator) and its radials relieving the pins from mechanical tension.

The ferrites are FT140-43; the transformation (upper ferrite) is made by silver-plated copper wire; the RF Choke is formed by RG 188 A-U.

The upper pin is for the radiator; the one side connects the radial/s.

Wide band from 1.8 to 29 MHz.

Many OM employ this adapter to power the O.C.F.D. type antennas when the ride height to ground is not too high.

The connection provides the long radiator to the upper pin, the short one to the side pin.

UNUN 4:1 - MEDIUM POWER

1,5 kW max



Pictures and features will be available soon!





Delta FASTLOOP W.A.R.C.

30 meters

....../p - Alta Valsassina

prove in 6 metri

6 meters 2 elements

Delta

FWD 10-15-20 s

Free Wire Delta

(the 20 meters band is a shortened loop by an inductive load - flattop)

...low-bands...

and so on....
